MCP Server #
Work with MCP Server #
TThe MCP Server provides commonly used MCP configurations for large model calls.
MCP Server API #
Below is the field description for the MCP Server.
Field | Type | Description |
---|---|---|
name | string | The MCP Server’s name. |
type | string | The type to access the API of the MCP Server, possible values: stdio, streamable http. |
icon | string | The icon representing the MCP Server in the UI. |
category | string | The category of the MCP Server. |
icon | string | The icon representing the model provider in the UI. |
config | object | The specify config for the type, e.g., {“args”:["@playwright/mcp@latest", “–headless”], “command”: “npx”, “env”: {“key1”:“v1”}}. |
enabled | boolean | Enables or disables MCP Server. |
Create a model provider #
//request
curl -H 'Content-Type: application/json' -XPOST http://localhost:9000/mcp_server/ -d '{
"name" : "playwright",
"icon" : "font_robot",
"type" : "stdio",
"category" : "Network Tools",
"config" : {
"args" : [
"@playwright/mcp@latest",
"--headless"
],
"command" : "npx",
"env" : { }
},
"enabled" : true
}'
//response
{
"_id": "d07jnoac7k8ff566lar0",
"result": "created"
}
View a MCP Server #
curl -XGET http://localhost:9000/mcp_server/d07jnoac7k8ff566lar0
Delete the MCP Server #
//request
curl -H 'Content-Type: application/json' -XDELETE http://localhost:9000/mcp_server/d07jnoac7k8ff566lar0
//response
{
"_id": "d07jnoac7k8ff566lar0",
"result": "deleted"
}'
Update a Model Provider #
curl -XPUT http://localhost:9000/mcp_server/d07jnoac7k8ff566lar0 -d '{
"name" : "playwright",
"icon" : "font_robot",
"type" : "stdio",
"category" : "Network Tools",
"config" : {
"args" : [
"@playwright/mcp@latest",
"--headless"
],
"command" : "npx",
"env" : { }
},
"enabled" : true
}'
//response
{
"_id": "d07jnoac7k8ff566lar0",
"result": "updated"
}
Search MCP Servers #
curl -XGET http://localhost:9000/mcp_server/_search
MCP Server UI Management #
Search MCP Server #

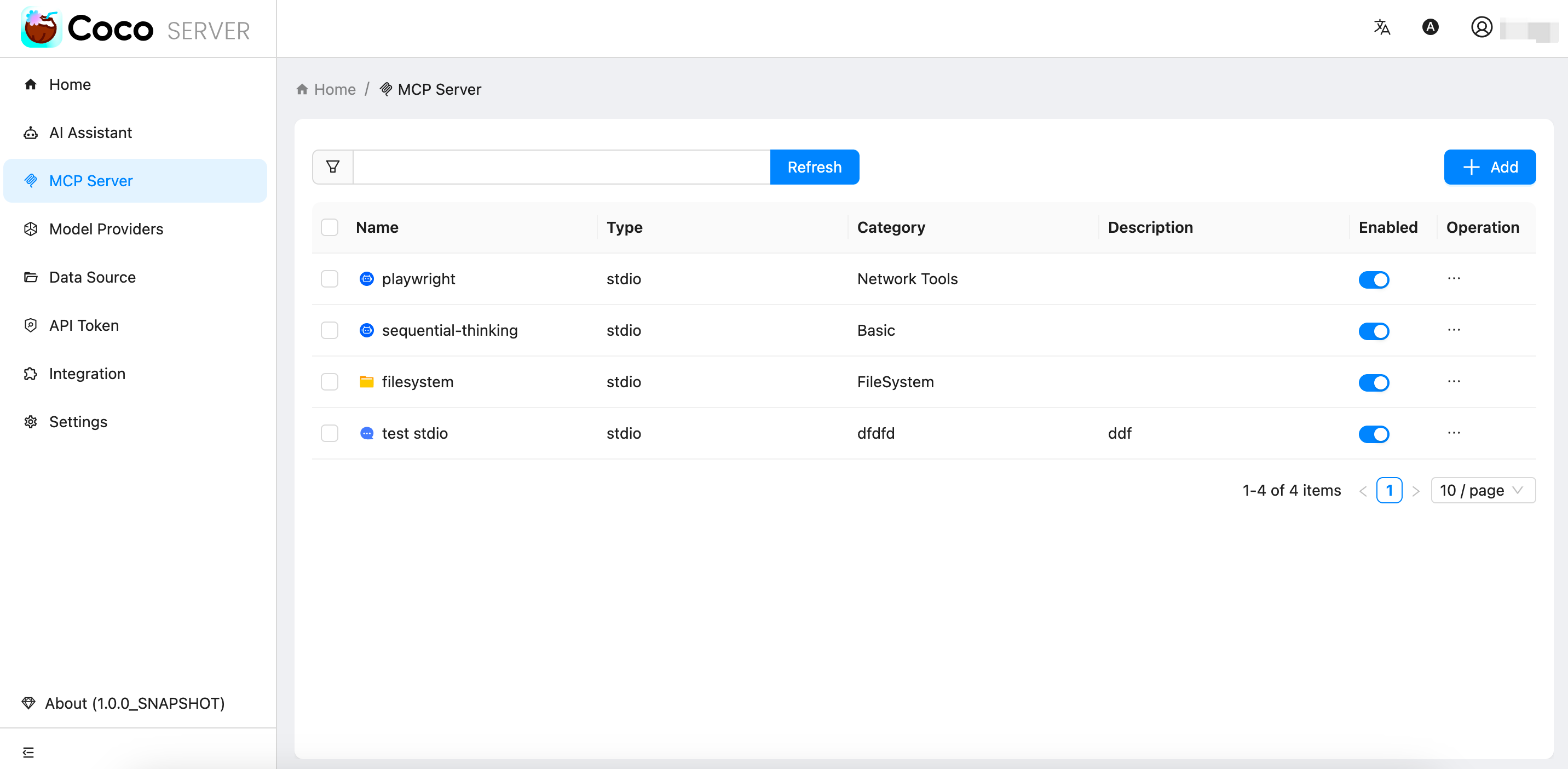

Log in to the Coco-Server admin dashboard, click MCP Server
in the left menu to view all MCP Server lists, as shown below:
Here, we can also choose an MCP Server from the list and quickly disable or enable it by toggling the switch.

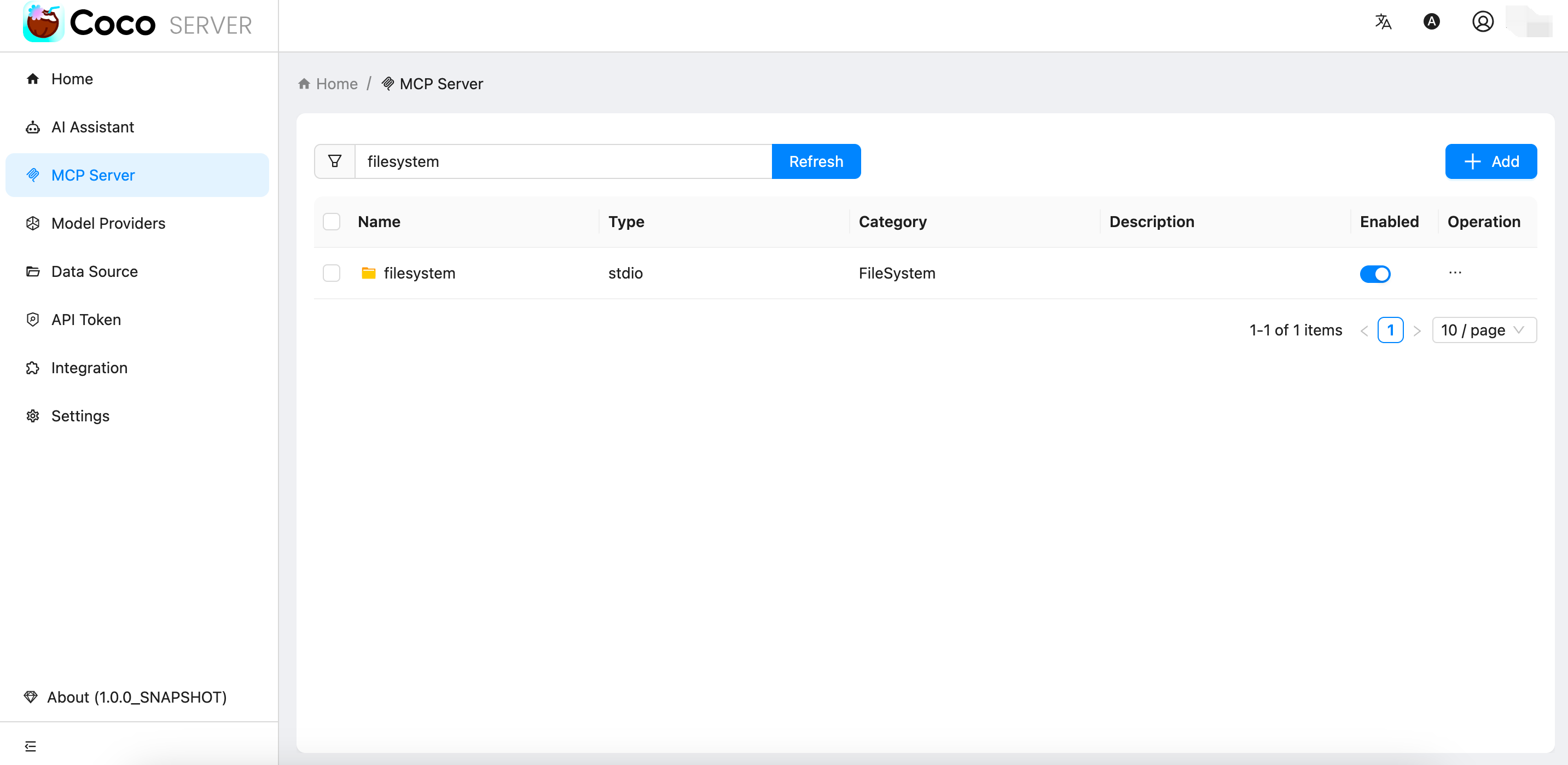

Enter keywords in the search box above the list and click the Refresh
button to search for matching MCP Server, as shown below:
Add MCP Server #

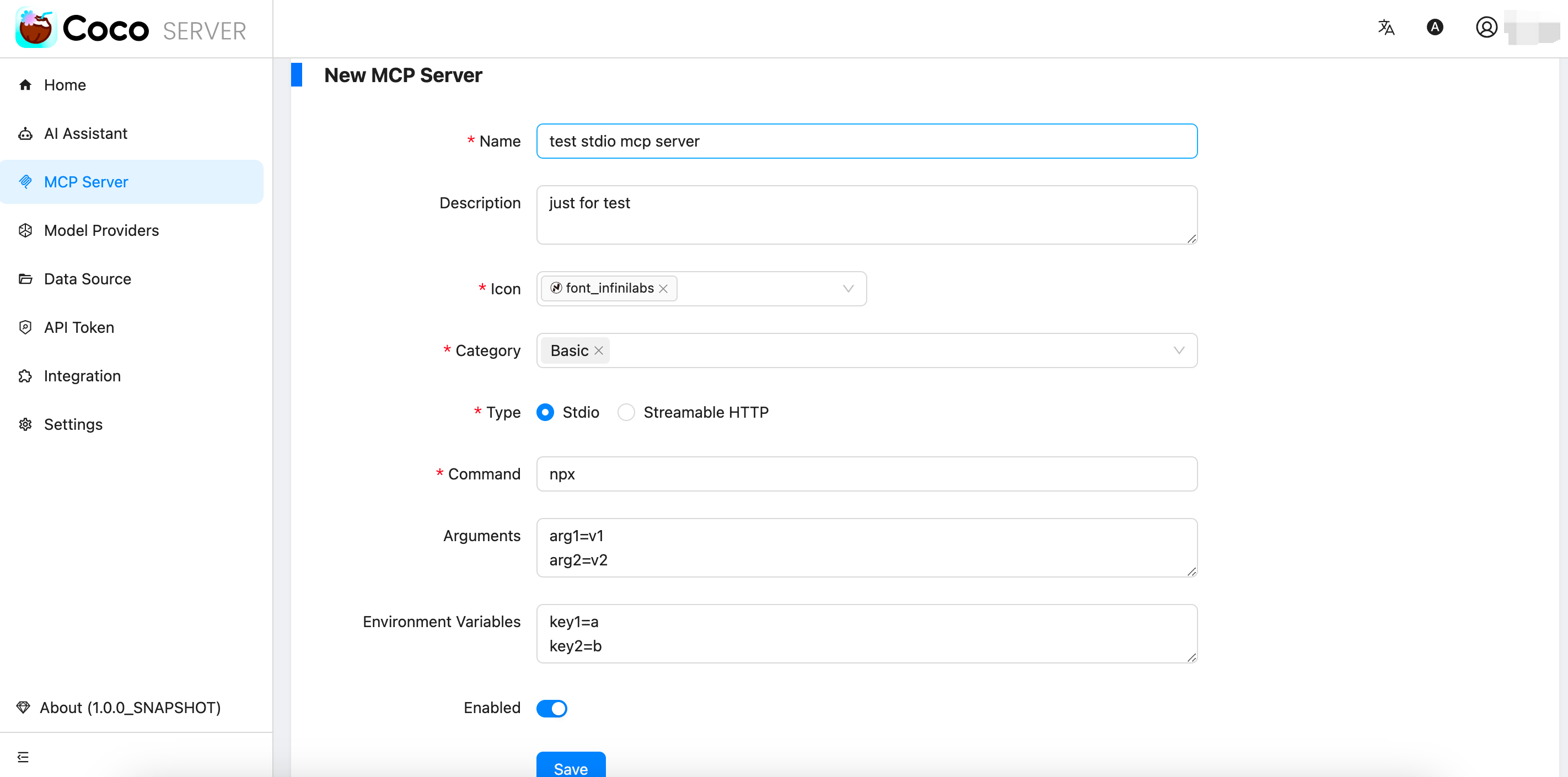

Click Add
in the top-right corner of the list to create a new MCP Server, as shown below:
Here, we select the type stdio, and the args and env should be configured with one item per line.

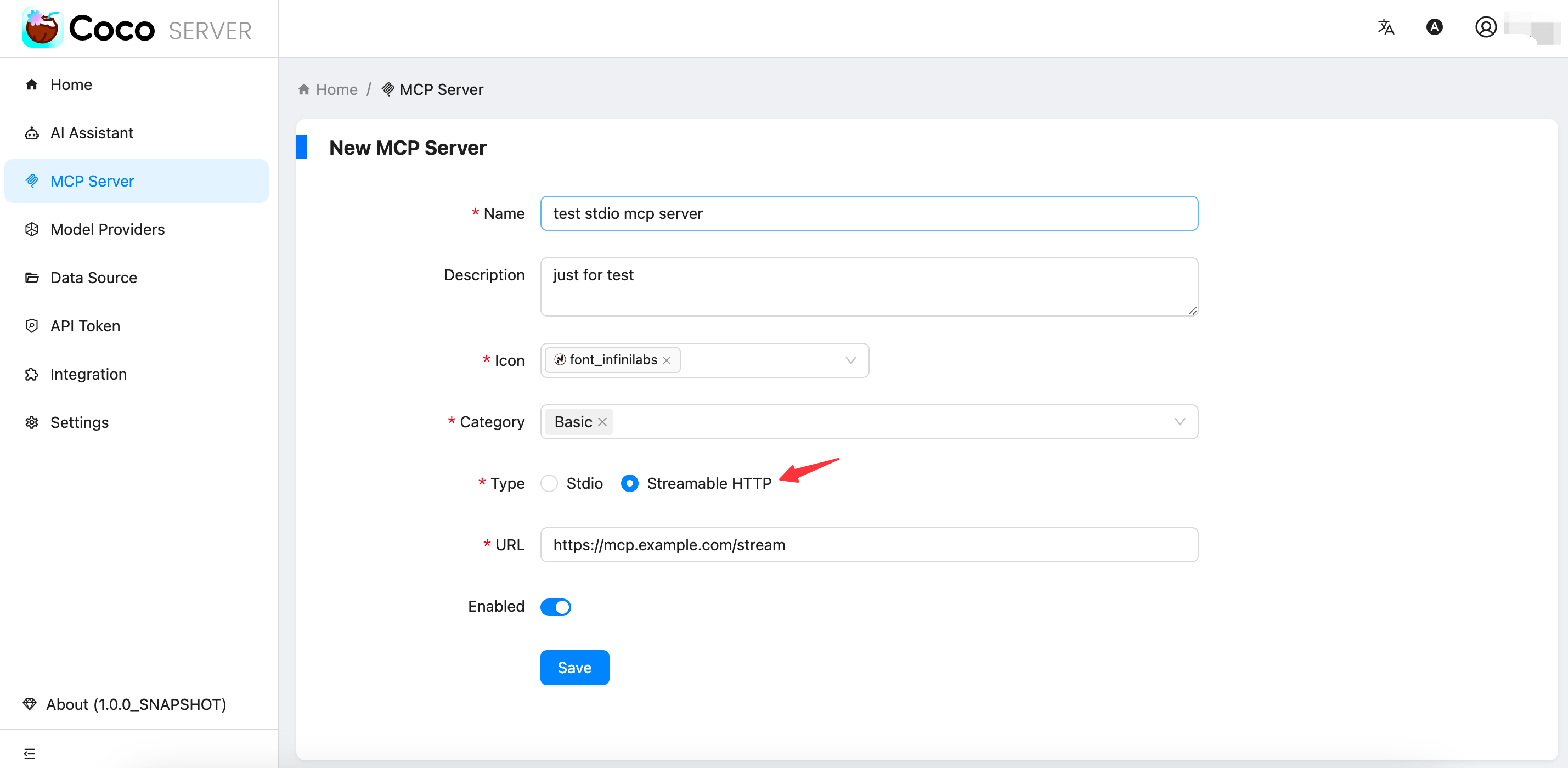

Here, we select the type
Streamable HTTP
, and we just need to configure a URL for the MCP Server.
Delete MCP Server #

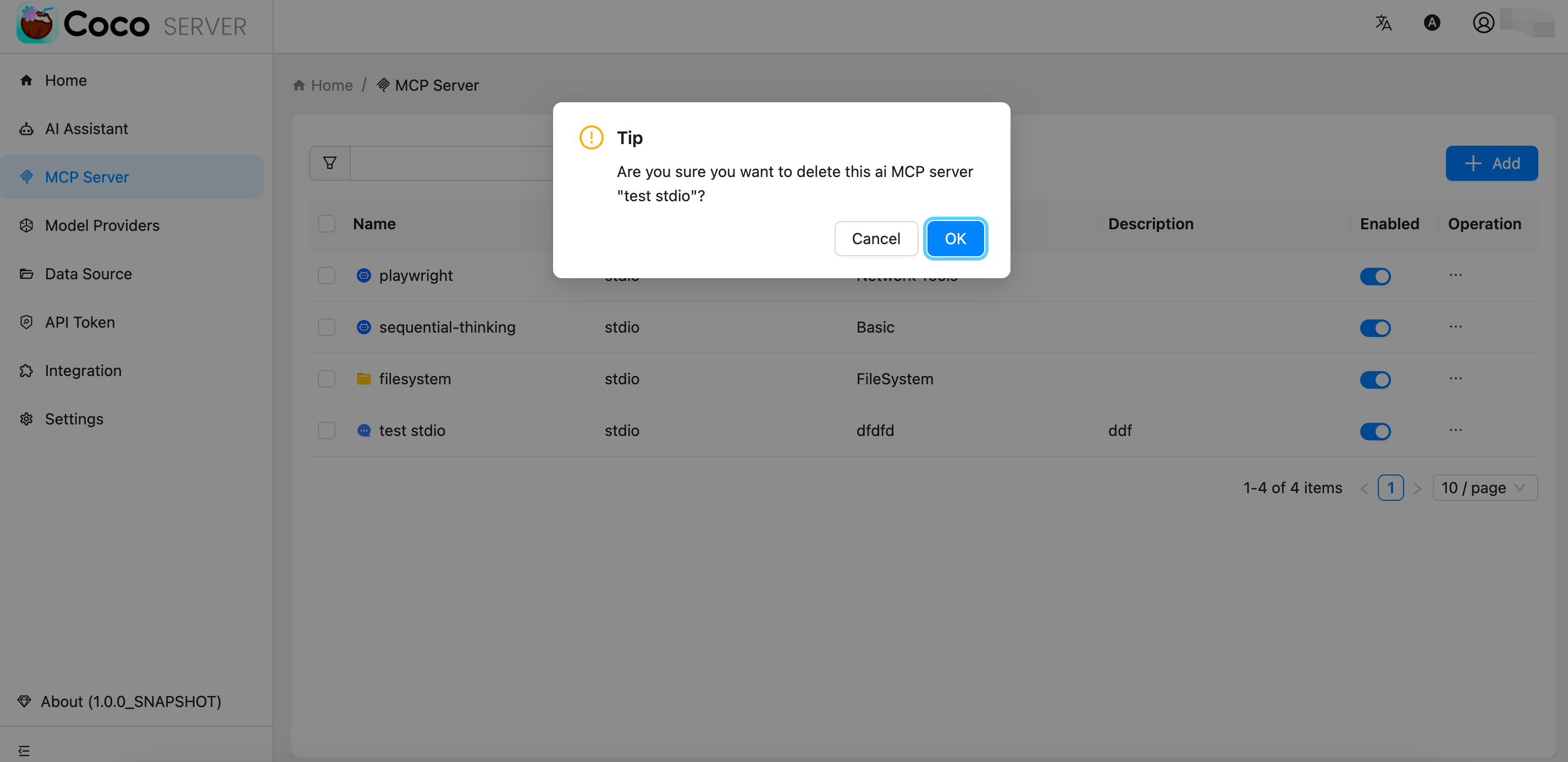

Select the target MCP Server in the list, click Delete
on the right side of the entry, and confirm in the pop-up dialog to complete the deletion. As shown below:
Edit MCP Server #

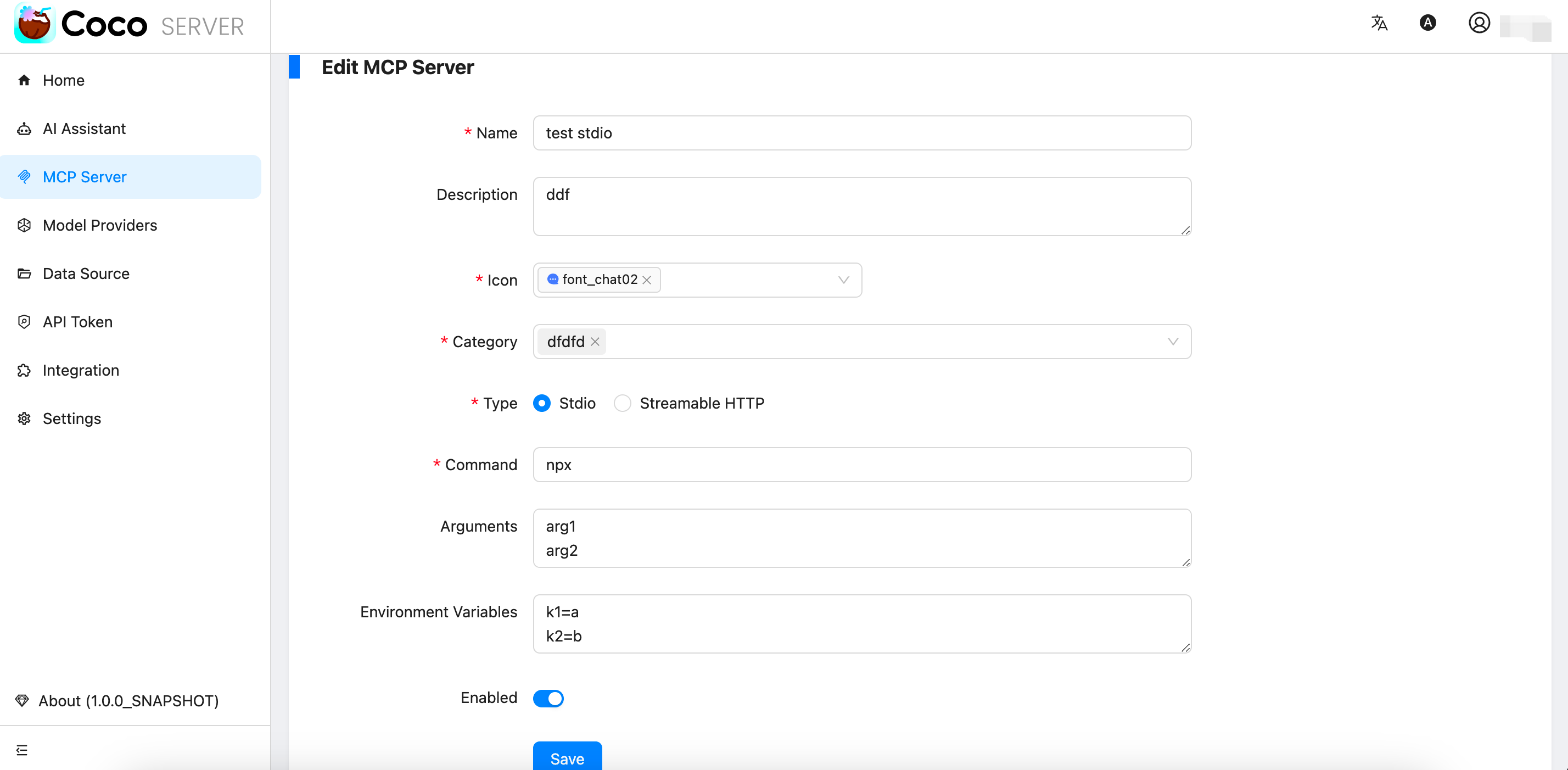

Select the target MCP Server in the list, click Edit
on the right side to enter the editing page. Modify the configuration and click save to update. As shown below:
